HTML5 WebGL 3D樱花飘落动画代码

maolai web前端评论184阅读模式

这是一个js实现动态樱花飘落的炫酷动画网页,基于WebGL技术。每一片樱花落叶由canvas上绘制而成,叶片随着不同的角度发出不同的色泽光芒,呈现出3D立体的视觉效果。整个樱花飘落动画非常大气,如花雨一般,让人倍感很唯美。整个动画可以通过按钮控制开启和暂停。

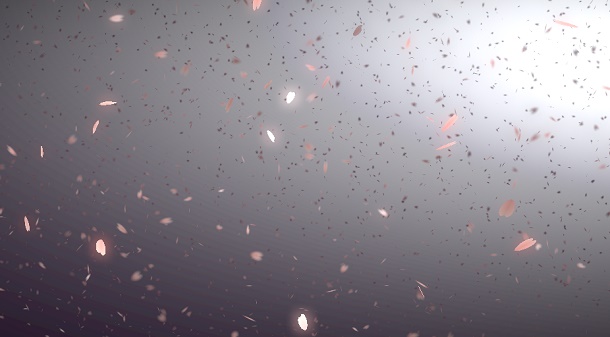

效果演示

html代码

<!DOCTYPE html>
<html lang="en" >
<head>
  <meta charset="UTF-8">
  <title>HTML5 WebGL 3D樱花飘落动画演示</title>
  <meta name="keywords" content="html5,3d樱花代码,樱花飘落背景代码" />
  <link rel="stylesheet" href="normalize.min.css">
<link rel="stylesheet" href="style.css">
<script src="prefixfree.min.js"></script>
</head>
<body>
<!-- partial:index.partial.html -->
<canvas id="sakura"></canvas>
<div class="btnbg">
<button type="button" onclick="toggleAnimation(this)">Stop</button>
</div>

<!-- sakura shader -->
<script id="sakura_point_vsh" type="x-shader/x_vertex">
uniform mat4 uProjection;
uniform mat4 uModelview;
uniform vec3 uResolution;
uniform vec3 uOffset;
uniform vec3 uDOF;  //x:focus distance, y:focus radius, z:max radius
uniform vec3 uFade; //x:start distance, y:half distance, z:near fade start

attribute vec3 aPosition;
attribute vec3 aEuler;
attribute vec2 aMisc; //x:size, y:fade

varying vec3 pposition;
varying float psize;
varying float palpha;
varying float pdist;

//varying mat3 rotMat;
varying vec3 normX;
varying vec3 normY;
varying vec3 normZ;
varying vec3 normal;

varying float diffuse;
varying float specular;
varying float rstop;
varying float distancefade;

void main(void) {
    // Projection is based on vertical angle
    vec4 pos = uModelview * vec4(aPosition + uOffset, 1.0);
    gl_Position = uProjection * pos;
    gl_PointSize = aMisc.x * uProjection[1][1] / -pos.z * uResolution.y * 0.5;

    pposition = pos.xyz;
    psize = aMisc.x;
    pdist = length(pos.xyz);
    palpha = smoothstep(0.0, 1.0, (pdist - 0.1) / uFade.z);

    vec3 elrsn = sin(aEuler);
    vec3 elrcs = cos(aEuler);
    mat3 rotx = mat3(
        1.0, 0.0, 0.0,
        0.0, elrcs.x, elrsn.x,
        0.0, -elrsn.x, elrcs.x
    );
    mat3 roty = mat3(
        elrcs.y, 0.0, -elrsn.y,
        0.0, 1.0, 0.0,
        elrsn.y, 0.0, elrcs.y
    );
    mat3 rotz = mat3(
        elrcs.z, elrsn.z, 0.0,
        -elrsn.z, elrcs.z, 0.0,
        0.0, 0.0, 1.0
    );
    mat3 rotmat = rotx * roty * rotz;
    normal = rotmat[2];

    mat3 trrotm = mat3(
        rotmat[0][0], rotmat[1][0], rotmat[2][0],
        rotmat[0][1], rotmat[1][1], rotmat[2][1],
        rotmat[0][2], rotmat[1][2], rotmat[2][2]
    );
    normX = trrotm[0];
    normY = trrotm[1];
    normZ = trrotm[2];

    const vec3 lit = vec3(0.6917144638660746, 0.6917144638660746, -0.20751433915982237);

    float tmpdfs = dot(lit, normal);
    if(tmpdfs < 0.0) {
        normal = -normal;
        tmpdfs = dot(lit, normal);
    }
    diffuse = 0.4 + tmpdfs;

    vec3 eyev = normalize(-pos.xyz);
    if(dot(eyev, normal) > 0.0) {
        vec3 hv = normalize(eyev + lit);
        specular = pow(max(dot(hv, normal), 0.0), 20.0);
    }
    else {
        specular = 0.0;
    }

    rstop = clamp((abs(pdist - uDOF.x) - uDOF.y) / uDOF.z, 0.0, 1.0);
    rstop = pow(rstop, 0.5);
    //-0.69315 = ln(0.5)
    distancefade = min(1.0, exp((uFade.x - pdist) * 0.69315 / uFade.y));
}
</script>
<script id="sakura_point_fsh" type="x-shader/x_fragment">
#ifdef GL_ES
//precision mediump float;
precision highp float;
#endif

uniform vec3 uDOF;  //x:focus distance, y:focus radius, z:max radius
uniform vec3 uFade; //x:start distance, y:half distance, z:near fade start

const vec3 fadeCol = vec3(0.08, 0.03, 0.06);

varying vec3 pposition;
varying float psize;
varying float palpha;
varying float pdist;

//varying mat3 rotMat;
varying vec3 normX;
varying vec3 normY;
varying vec3 normZ;
varying vec3 normal;

varying float diffuse;
varying float specular;
varying float rstop;
varying float distancefade;

float ellipse(vec2 p, vec2 o, vec2 r) {
    vec2 lp = (p - o) / r;
    return length(lp) - 1.0;
}

void main(void) {
    vec3 p = vec3(gl_PointCoord - vec2(0.5, 0.5), 0.0) * 2.0;
    vec3 d = vec3(0.0, 0.0, -1.0);
    float nd = normZ.z; //dot(-normZ, d);
    if(abs(nd) < 0.0001) discard;

    float np = dot(normZ, p);
    vec3 tp = p + d * np / nd;
    vec2 coord = vec2(dot(normX, tp), dot(normY, tp));

    //angle = 15 degree
    const float flwrsn = 0.258819045102521;
    const float flwrcs = 0.965925826289068;
    mat2 flwrm = mat2(flwrcs, -flwrsn, flwrsn, flwrcs);
    vec2 flwrp = vec2(abs(coord.x), coord.y) * flwrm;

    float r;
    if(flwrp.x < 0.0) {
        r = ellipse(flwrp, vec2(0.065, 0.024) * 0.5, vec2(0.36, 0.96) * 0.5);
    }
    else {
        r = ellipse(flwrp, vec2(0.065, 0.024) * 0.5, vec2(0.58, 0.96) * 0.5);
    }

    if(r > rstop) discard;

    vec3 col = mix(vec3(1.0, 0.8, 0.75), vec3(1.0, 0.9, 0.87), r);
    float grady = mix(0.0, 1.0, pow(coord.y * 0.5 + 0.5, 0.35));
    col *= vec3(1.0, grady, grady);
    col *= mix(0.8, 1.0, pow(abs(coord.x), 0.3));
    col = col * diffuse + specular;

    col = mix(fadeCol, col, distancefade);

    float alpha = (rstop > 0.001)? (0.5 - r / (rstop * 2.0)) : 1.0;
    alpha = smoothstep(0.0, 1.0, alpha) * palpha;

    gl_FragColor = vec4(col * 0.5, alpha);
}
</script>
<!-- effects -->
<script id="fx_common_vsh" type="x-shader/x_vertex">
uniform vec3 uResolution;
attribute vec2 aPosition;

varying vec2 texCoord;
varying vec2 screenCoord;

void main(void) {
    gl_Position = vec4(aPosition, 0.0, 1.0);
    texCoord = aPosition.xy * 0.5 + vec2(0.5, 0.5);
    screenCoord = aPosition.xy * vec2(uResolution.z, 1.0);
}
</script>
<script id="bg_fsh" type="x-shader/x_fragment">
#ifdef GL_ES
//precision mediump float;
precision highp float;
#endif

uniform vec2 uTimes;

varying vec2 texCoord;
varying vec2 screenCoord;

void main(void) {
    vec3 col;
    float c;
    vec2 tmpv = texCoord * vec2(0.8, 1.0) - vec2(0.95, 1.0);
    c = exp(-pow(length(tmpv) * 1.8, 2.0));
    col = mix(vec3(0.02, 0.0, 0.03), vec3(0.96, 0.98, 1.0) * 1.5, c);
    gl_FragColor = vec4(col * 0.5, 1.0);
}
</script>
<script id="fx_brightbuf_fsh" type="x-shader/x_fragment">
#ifdef GL_ES
//precision mediump float;
precision highp float;
#endif
uniform sampler2D uSrc;
uniform vec2 uDelta;

varying vec2 texCoord;
varying vec2 screenCoord;

void main(void) {
    vec4 col = texture2D(uSrc, texCoord);
    gl_FragColor = vec4(col.rgb * 2.0 - vec3(0.5), 1.0);
}
</script>
<script id="fx_dirblur_r4_fsh" type="x-shader/x_fragment">
#ifdef GL_ES
//precision mediump float;
precision highp float;
#endif
uniform sampler2D uSrc;
uniform vec2 uDelta;
uniform vec4 uBlurDir; //dir(x, y), stride(z, w)

varying vec2 texCoord;
varying vec2 screenCoord;

void main(void) {
    vec4 col = texture2D(uSrc, texCoord);
    col = col + texture2D(uSrc, texCoord + uBlurDir.xy * uDelta);
    col = col + texture2D(uSrc, texCoord - uBlurDir.xy * uDelta);
    col = col + texture2D(uSrc, texCoord + (uBlurDir.xy + uBlurDir.zw) * uDelta);
    col = col + texture2D(uSrc, texCoord - (uBlurDir.xy + uBlurDir.zw) * uDelta);
    gl_FragColor = col / 5.0;
}
</script>
<!-- effect fragment shader template -->
<script id="fx_common_fsh" type="x-shader/x_fragment">
#ifdef GL_ES
//precision mediump float;
precision highp float;
#endif
uniform sampler2D uSrc;
uniform vec2 uDelta;

varying vec2 texCoord;
varying vec2 screenCoord;

void main(void) {
    gl_FragColor = texture2D(uSrc, texCoord);
}
</script>
<!-- post processing -->
<script id="pp_final_vsh" type="x-shader/x_vertex">
uniform vec3 uResolution;
attribute vec2 aPosition;
varying vec2 texCoord;
varying vec2 screenCoord;
void main(void) {
    gl_Position = vec4(aPosition, 0.0, 1.0);
    texCoord = aPosition.xy * 0.5 + vec2(0.5, 0.5);
    screenCoord = aPosition.xy * vec2(uResolution.z, 1.0);
}
</script>
<script id="pp_final_fsh" type="x-shader/x_fragment">
#ifdef GL_ES
//precision mediump float;
precision highp float;
#endif
uniform sampler2D uSrc;
uniform sampler2D uBloom;
uniform vec2 uDelta;
varying vec2 texCoord;
varying vec2 screenCoord;
void main(void) {
    vec4 srccol = texture2D(uSrc, texCoord) * 2.0;
    vec4 bloomcol = texture2D(uBloom, texCoord);
    vec4 col;
    col = srccol + bloomcol * (vec4(1.0) + srccol);
    col *= smoothstep(1.0, 0.0, pow(length((texCoord - vec2(0.5)) * 2.0), 1.2) * 0.5);
    col = pow(col, vec4(0.45454545454545)); //(1.0 / 2.2)

    gl_FragColor = vec4(col.rgb, 1.0);
    gl_FragColor.a = 1.0;
}
</script>
<!-- partial -->
  <script  src="script.js"></script>
</body>
</html>

2、网站PC端樱花掉落html+JS特效+鼠标点击特效代码

在线演示

将以下js代码放在要显示的网页底部即可

<script type="text/javascript" src="http://www.bokequ.com/show/yinghua/2/js/yinghua.js"></script>

3、基于canvas绘制逼着的樱花飘动,在水中的场景动画特效
在线演示


maolai
  • 本文由 maolai 发表于 2024年5月10日 14:24:49
  • 转载请务必保留本文链接:http://www.bokequ.com/540.html
